RealVNC is one of the most mature VNC(Virtual Network Computing) remote desktop solutions available and is continuously maintained by the original team at AT&T Labs at the University of Cambridge. It supports Windows, macOS, Linux and embedded systems. As long as it can connect to the network, it can operate the remote host like sitting in front of the computer. The following is an example of Windows scenario to demonstrate how to enable home computers to securely access external networks remotely through Aweshell internal network penetration without public network IP.

Configure the RealVNC Server remote password

First, go to RealVNC official website to download the Server version of the corresponding system.

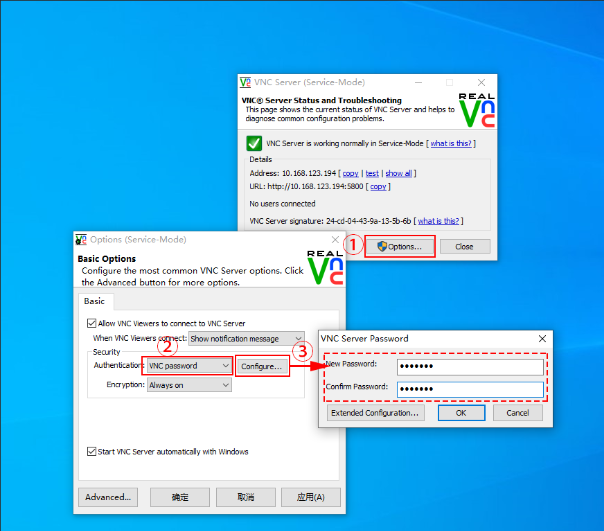

After the RealVNC Server is installed, click [Options], select [VNC password], and click [Configure] to set the remote password of the RealVNC Server

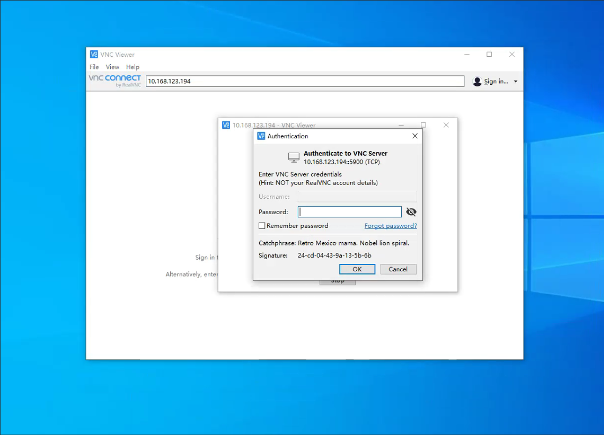

Finally, the remote password setting of the RealVNC Server is completed, and the host in the same LAN as the RealVNC Server can be remotely controlled through the RealVNC Viewer.

Use Aweshell simple 3 steps to achieve RealVNC Server remote access

If you want to realize the remote access requirements of RealVNC Server, you can use Aweshell intranet penetration software without public network IP and support remote access in any network environment.

Step 1: Download the Aweshell client in the Aweray official website, register the Aweray account, and install the login client on the intranet host/server;

Step 2: Enter the Aweshell cloud management platform → click intranet penetration → add mapping → select "regular application";

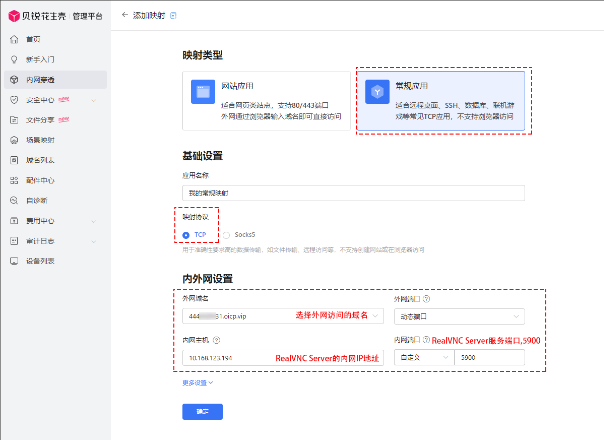

Step 3: Set according to the prompt, fill in the LAN IP and access port number of the RealVNC Server

After the following figure correctly fills in the relevant information, click Save, and an external network access domain name will be automatically generated.

After completing the above three steps, an external network access address can be generated, RealVNC Viewer can remotely control the RealVNC Server through the external network address.

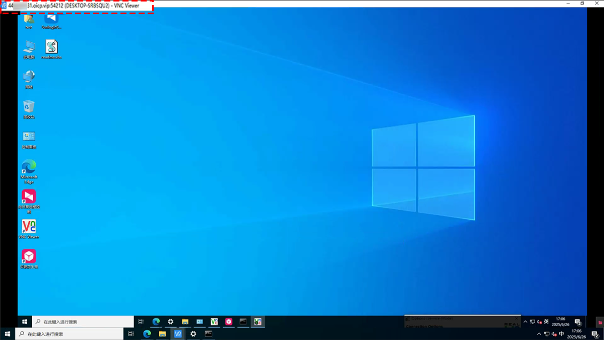

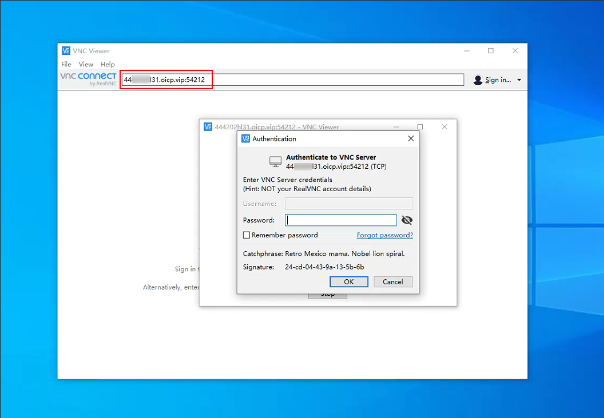

Finally, enter the external network address and external network port (in the format of external network domain name: external network port) in the RealVNC Viewer to realize remote RealVNC of the external network Server.

The combination of RealVNC and Aweshell intranet penetration simplifies the complex port mapping, certificate verification and dynamic domain name into a simple three-step process. After that, regardless of business, travel or emergency maintenance, only a mobile phone, a network, you can easily achieve remote access to RealVNC Server.
