This article shares a tutorial on a simple private cloud disk. You can build an encrypted private cloud disk system by selecting Aweshell + kiftd, without professional technology, expensive hardware and complicated configuration process.

Kiftd is a private network disk system for individuals, groups and small organizations, no need to install, double-click to use. It only takes 3 minutes or less to deploy a cloud disk system.

1. Build a private cloud disk

(1) Download kiftd to the local computer;

(2) Decompress the kift installation package and double-click the program in the figure to run it directly (if the computer does not have a Java environment, download and install it according to the system prompt);

(3) The main interface of the kiftd file system server is "stopped" by default. Click "Open" and the server will start successfully;
If the server is not started successfully, check whether the default port is occupied and modify it to other ports (click "Settings" in the "Stop" state of the server to modify it);

(4) Click to upload shared files to the file server;

(5) Test the functions of accessing the file server and uploading files. Enter http:// 192.168.1.101:8080 in the browser, and the access is successful.
Click login in the upper right corner, enter the default user name admin and password 000000, and you can experience your own private cloud disk. Cloud disk interface function as shown below:
① Upload: Directly drag the file to the browser to upload, or click " Operation " button in the upper right corner to upload;
② Download: Click the Download button to the right of the file to be downloaded.

The private cloud disk in the internal network has been built. If you want to access the cloud disk in the external network, you need to use Aweshell software to penetrate the internal network.

Please see the Aweshell configuration steps below:

2. Configure Aweshell

2.1 installation login

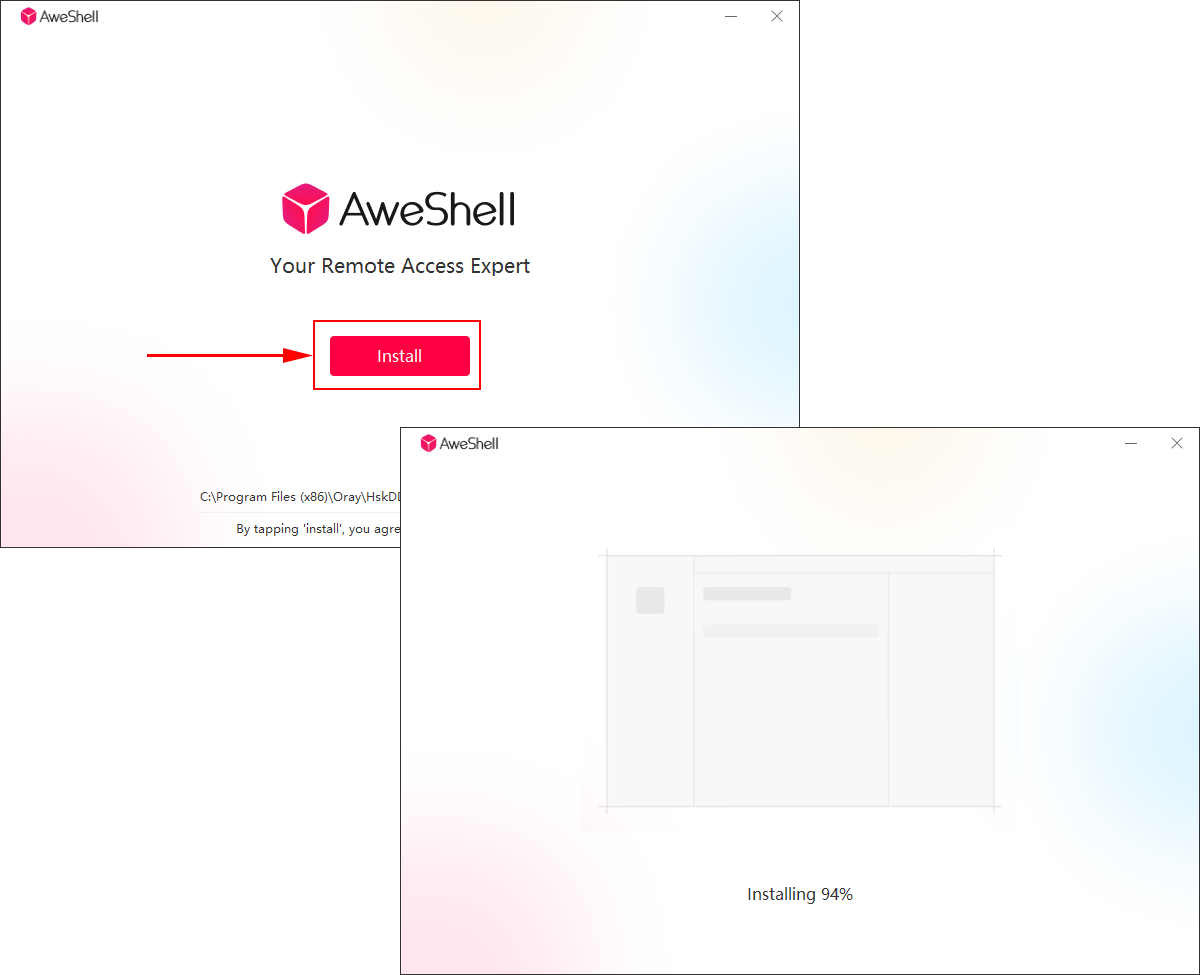

(1) We need to download the latest version of the Aweshell software to the computer, and then double-click the program to start the installation ( Download Aweshell );

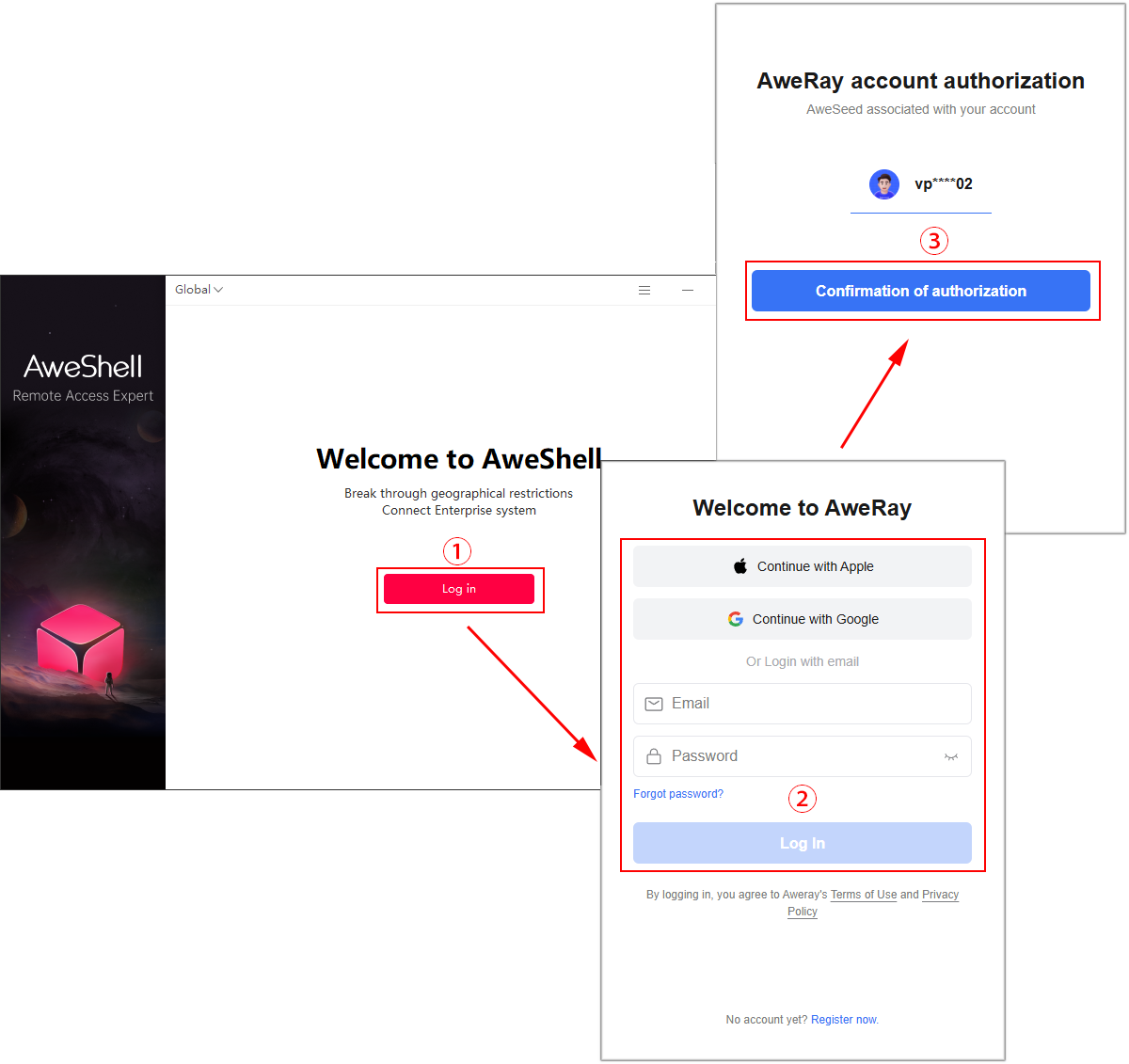

(2) After the Aweshell is installed, enter the Aweray account number and password in the login window to log in;

2.2 setting mapping

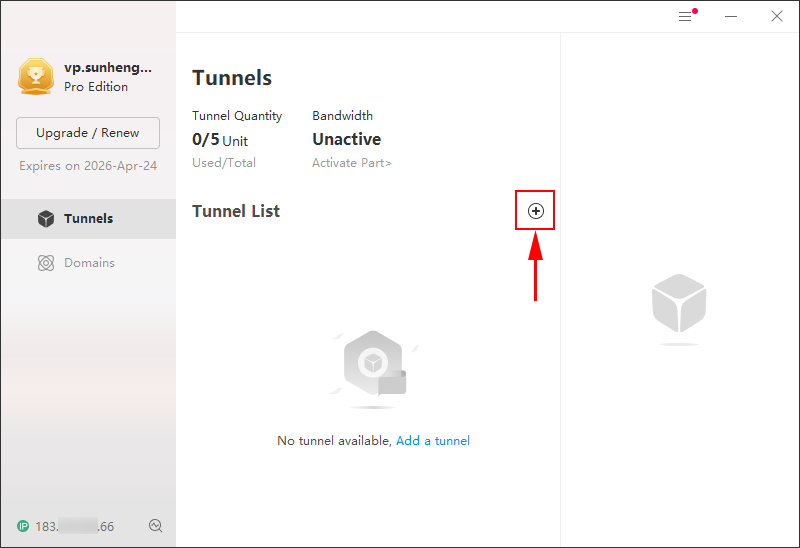

(1) The Aweshell supports setting mappings on the client or Web management platform. The client settings are shown in the following figure. Click [+] on the interface to jump to Aweshell management platform to add mappings.

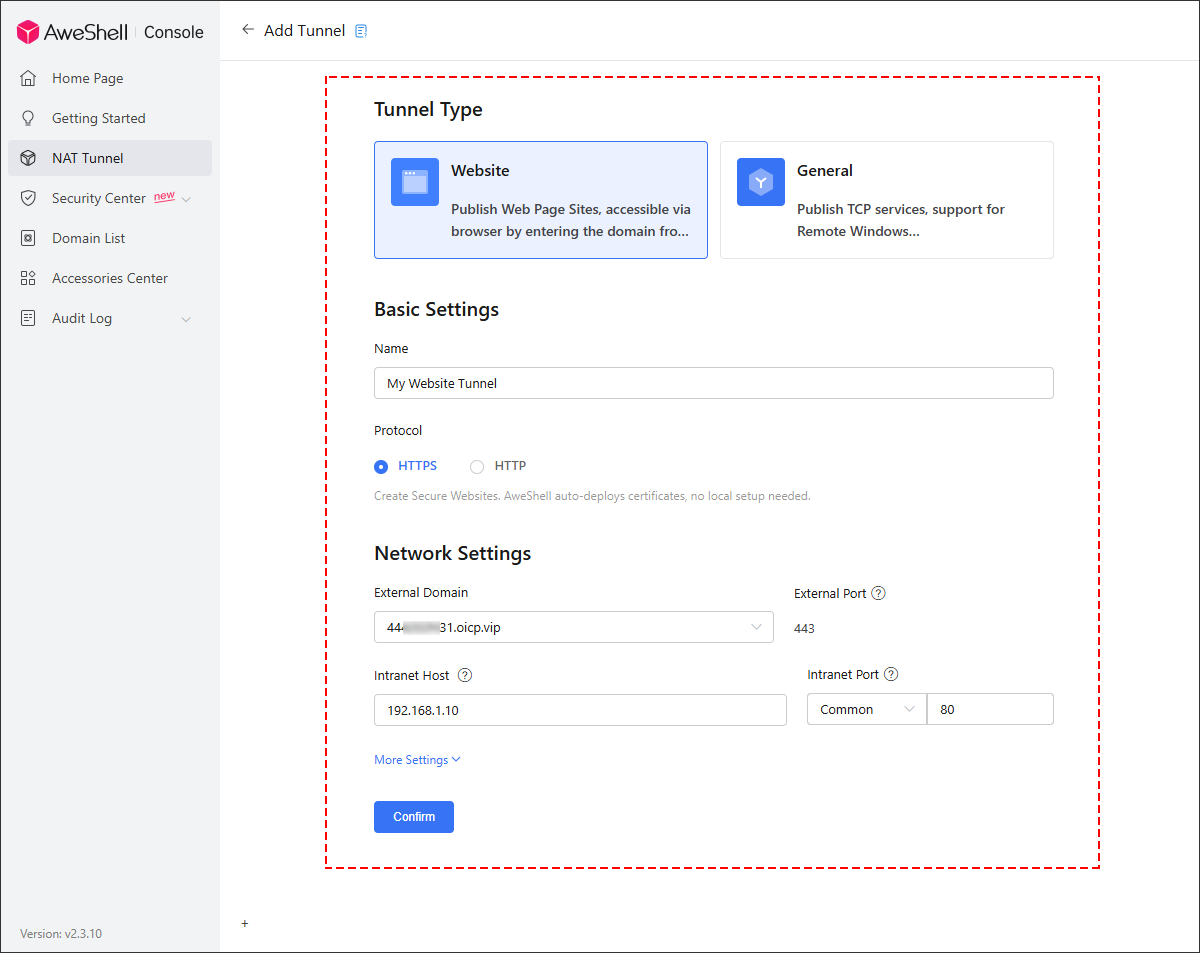

(2) Fill in the mapping information of the private cloud disk:

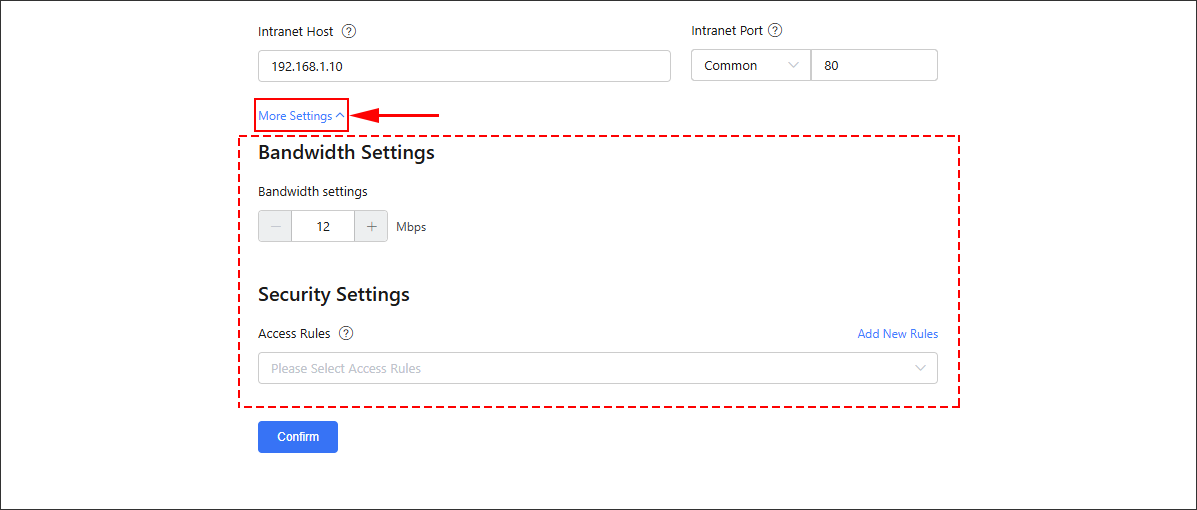

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.

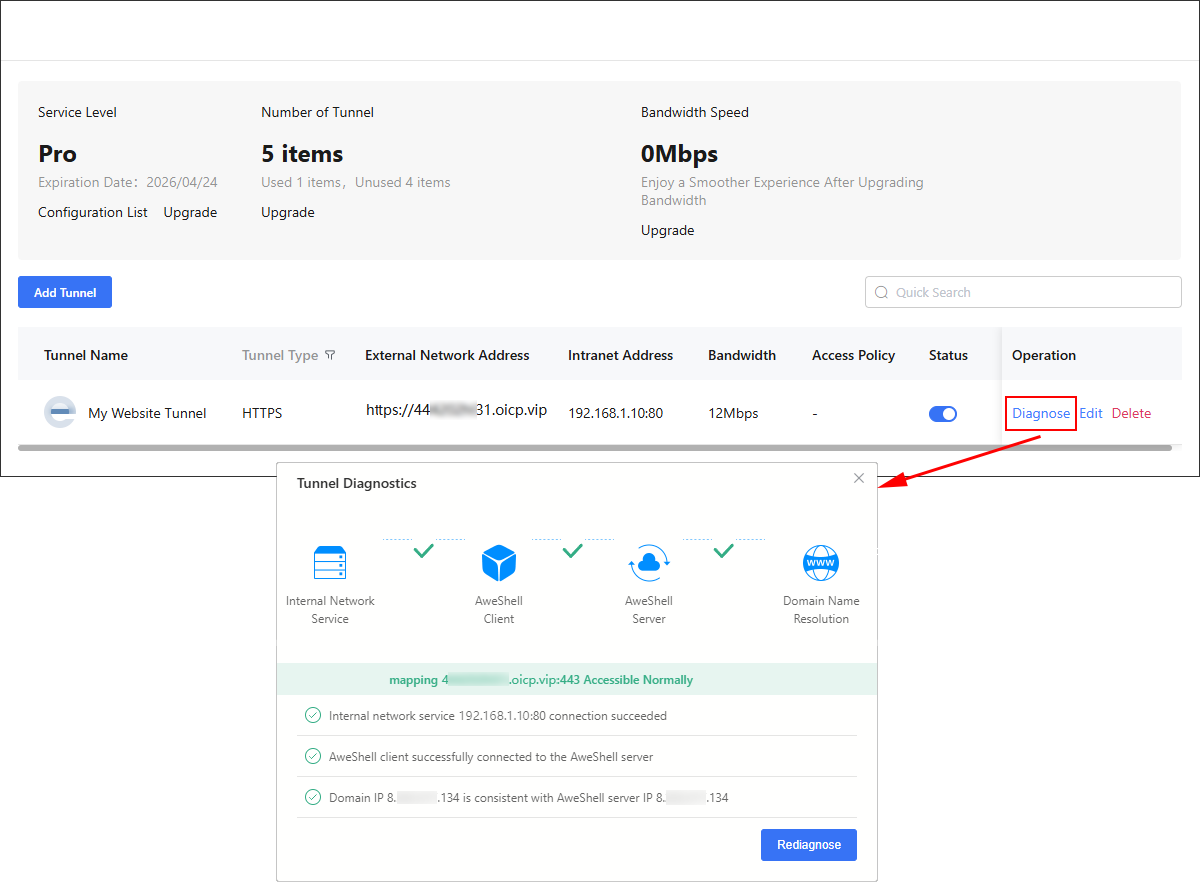

(3) At this time, an external network access address of https will be generated. Click " Diagnosis " in the lower left corner of the map to prompt that the map can be accessed normally.

! Note:
① The Aweshell program maps local intranet services to achieve extranet access
② If remote login is Aweshell, the set local intranet service mapping will be invalid
③ If services in multiple locations need to be published, it is recommended to use multiple accounts for mapping operations

3. Remote access to cloud disk

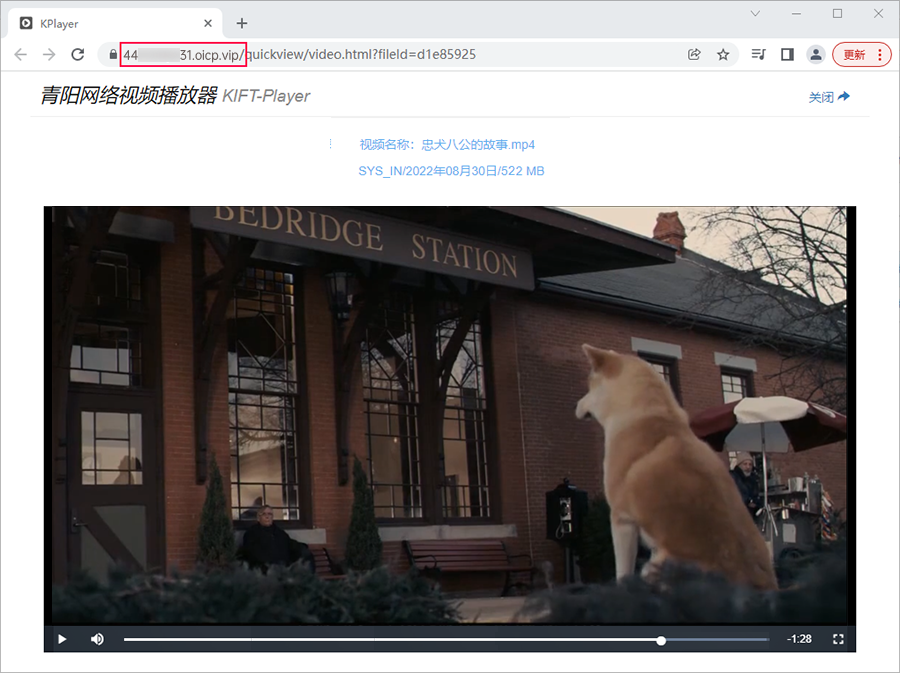

In the external network, use the encrypted address generated by Aweshell mapping to access the private cloud disk, you can view the data on the private cloud disk online.

By Aweshell the address mapped by HTTPS, the security lock is displayed in the address bar of the browser to implement encrypted access between the user and the server. In an application scenario of a private cloud disk, private information of the cloud disk can be effectively prevented from being stolen. Moreover, digital certificates are automatically deployed on Aweshell servers, and users only need to build cloud disks locally, helping users to realize remote encrypted access to private cloud disks with the fastest speed and the least cost.
